Male Type Board To Board Connector 24 Pins 1.0 Height Replace AXK8L24125 Panasonic

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

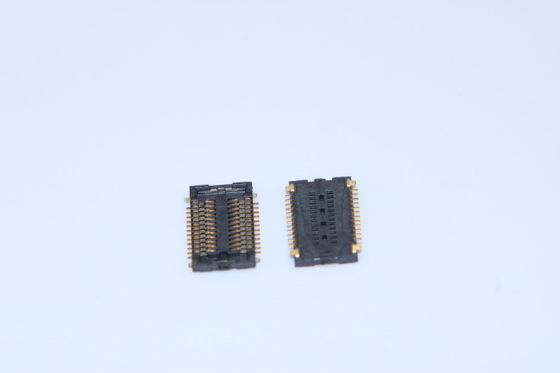

Male Type Board To Board Connector 24 Pins 1.0 Height Replace AXK8L24125 Panasonic

Male Type Board To Board Connector 24 Pins 1.0 Height Replace AXK8L24125 Panasonic
Male Type Board To Board Connector 24 Pins 1.0 Height Replace AXK8L24125 Panasonic

Large Image :  Male Type Board To Board Connector 24 Pins 1.0 Height Replace AXK8L24125 Panasonic

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5002-M024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Connector Part Number: 0.4mm Pitch Single Contact
Gender: Male Connector Type: Assembly Connector
Application: Printed Circuits Board Plating: Gold Plating
High Light:

board to board power connectors

,

board to board header connector





24 pins male type board to board connector 0.4mm pitch 1.0 height replace AXK8L24125 Panasonic





RIGHT-ANGLE HORIZONTAL BOARD-TO-BOARD CONNECTION:

• For applications requiring boards to be plugged in on a horizontal plane, right angle sockets and headers are used. RIGHT-ANGLE



PERPENDICULAR BOARD-TO-BOARD CONNECTION:

• Right-angle sockets and headers can also be used in tandem with vertical mount sockets and headers to create a perpendicular interconnect between two boards.



LOW PROFILE BOARD-TO-BOARD CONNECTION:

• For applications requiring boards to be mated very closely together to save vertical space.

• The carrier socket is placed in position, allowing the receptacles to fall into the holes in a pc board.

• Only the shoulder of the receptacle rests on the surface of the pc board.

• After wave soldering, the carrier is removed and only the height of the shoulder is left above the board. Effectively, the entire “insulator” has been eliminated.

• Next, a male header is mated to provide for a very tightly-spaced, pluggable board-to-board interconnect.





Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  single contact
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments







Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
