Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Board To Board Smt Connector | Part Number: | 0.4mm Pitch Single Contact |
|---|---|---|---|
| Electrical Rating: | AC/DC | Insulation Resistance: | 500M Ω |
| Application: | Printed Circuits Board | Plating: | Gold Plating |
| High Light: | board to board power connectors,board to board header connector |
||

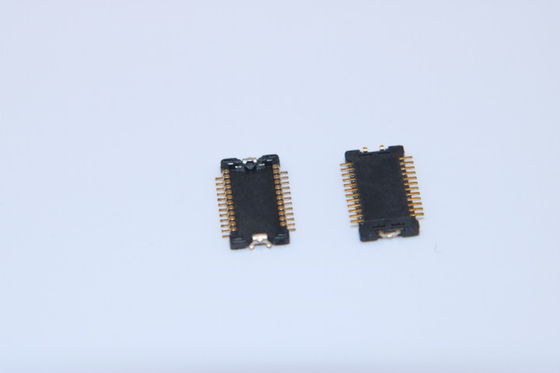

24 pins female type btb connector 0.4mm pitch 1.0 height replace AXK7L24227
BOARD TO BOARD CONNECTION TYPES:
Board to Board Permanent Stamped Pin Machined Pin Straight Right Angle Movable Stamped Pin Female Male Machine Pin Straight Through Hole Female Male Right Angle Through Hole Female Male
PERMANENT CONNECTION:
• Permanent connection between two boards can be readily achieved by soldering a through-hole header to both the main (mother) board and mezzanine (daughter) board.
MOVABLE CONNECTION:
• In most board-to-board applications, design requires that the boards are pluggable.
• The male headers in single and dual-row configurations are mated with female sockets.
• This allows for easy replacement in the event of board failure
Product Description :
| Product name: | DALEE connector |
| Secification: | 0.4mm Pitch |
| part number: | single contact |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Operating voltage: | 10V AC(RMS)/DC |
| Withstand Volt : | 200 V AC/minute |
| Operating Temprature: | -25 ℃ - +80 ℃ |
| Insulation Resistance | 500M ohms min. at 250VDC |
| Dielectric withstandig voltae: | 500VAC/1minute |
| Contact Resistance: | 1000m ohms max |
| Contact material: | Phosphor bronze/gold plated |
| Housing: | LCP, UL94V-0, white |
Competitive Advantages:
1, 11 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict shipping ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
Product Application:
1, electrical equipment .
2, Communications Industry.
3, Security Equipment.
4, Automotive Filed
5, Network Communications
6, Measuring Instruments
Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
Shipping:
1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.
If you have any special needs please notify me.
2. It will take around 3-5 days to reach your hands.
Product Type & Condition :
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.
Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
