Female Type Board To Board Connector0.4mm Pitch Replace DF30FC-24DS-0.4V HIROSE

Female Type Board To Board  Connector0.4mm Pitch Replace DF30FC-24DS-0.4V HIROSE
Female Type Board To Board  Connector0.4mm Pitch Replace DF30FC-24DS-0.4V HIROSE

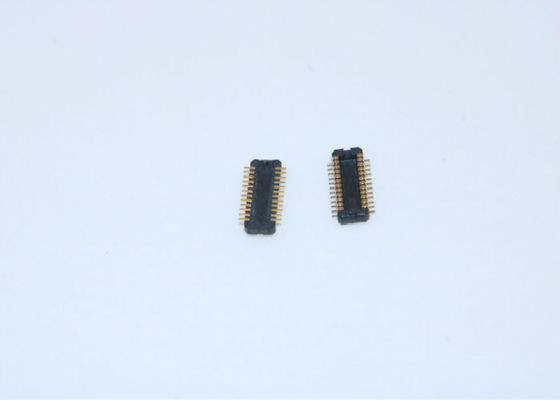

Large Image :  Female Type Board To Board Connector0.4mm Pitch Replace DF30FC-24DS-0.4V HIROSE

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5004-F024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Smt Connector Part Number: 5004-F024-04 / DF30FC-24DS-0.4V HIROSE
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
Application: Printed Circuits Board Pins: 24 P
High Light:

board to board power connectors

,

board to board header connector





0.4mm pitch 1.0mm H Board to board connector 24 pins female type replace DF30FC-24DS-0.4V HIROSE







Main features:

  • Reliable mechanical and electrical connections, thanks to the double-sided contact system
  • Various numbers of positions, designs, and stack heights with high wipe lengths
  • Compact, high-position board-to-board and wire-to-board connectors for space-saving device designs
  • Additional solder anchors reduce the mechanical strain on the soldering spots



Extensive range of quality, competitive Board to Board Connectors with industry standard configuration and footprints for new product designs or substitution of manufacturers including 5001-BTB0540-40F



Board to Board Connectors are designed to enable the connection of PCB’s without cables, in various board orientations such as Mezzanine / Stacked, Right Angled or Side by Side.





Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  5004-F024-04 / DF30FC-24DS-0.4V HIROSE
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments





Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.







Shipping:



1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.
