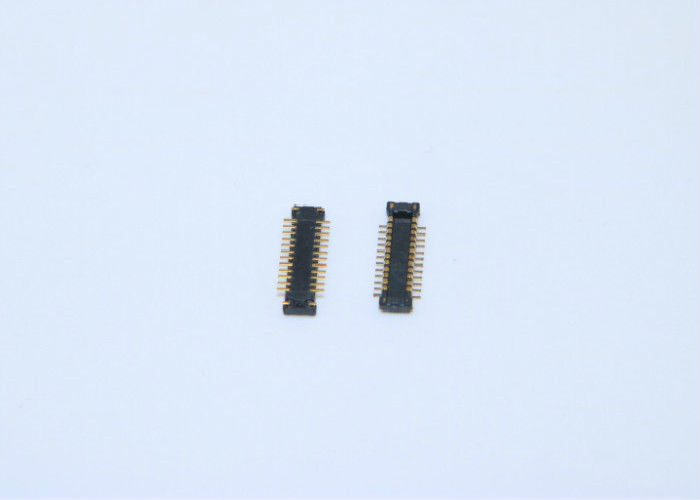

Height 1.0mm Board To Board Connector 24 Pins Replace AXT524124 Panasonic

Height 1.0mm Board To Board Connector 24 Pins Replace AXT524124 Panasonic
Height 1.0mm Board To Board Connector 24 Pins Replace AXT524124 Panasonic

Large Image :  Height 1.0mm Board To Board Connector 24 Pins Replace AXT524124 Panasonic

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5006-F024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: BTB Connector Part Number: 5006-F024-04 / AXT524124
Gender: Female Connector Type: Assembly Connector
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
Application: Printed Circuits Board Color: Black
Plating: Gold Plating Pins: 24 P
High Light:

board to board power connectors


board to board header connector


Replace AXT524124 Panasonic,H=1.0mm 0.4mm pitch 24 pins female type BTB connector



Board-to-Board Connectors, which feature a large floating range to facilitate assembly and a small pitch. These connectors are ideal for a wide range of applications in the automotive, industrial and consumer markets.


Automatic Assembly: A generous floating range facilitates blind mating and board-to-board connections, eliminating the need for high-cost FPC to connect PCBs. As a result, the Connectors deliver both design flexibility and lower component costs.


Higher-Temperature Operation: Having the ability to withstand higher operating temperatures allow FSB5 Series Connectors to be used in high-performance products. Increasing product densities and performance needs demand high operating temperatures, however many B-to-B connectors are only capable to withstand operating temperatures of a 105°C. B-to-B Floating FSB5 Series Connectors can operate at up to 125°C.


Provides maximum space savings: Advanced Driver-Assistance Systems (ADASs) continue to shrink in size, therefore creating the need for a more compact connector. Board-to-Board Connectors were developed in response to the automotive camera market's need for more compact applications.




Product Description :


Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  5006-F024-04 / AXT524124
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white








1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.




Product Type & Condition :


Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.



Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
