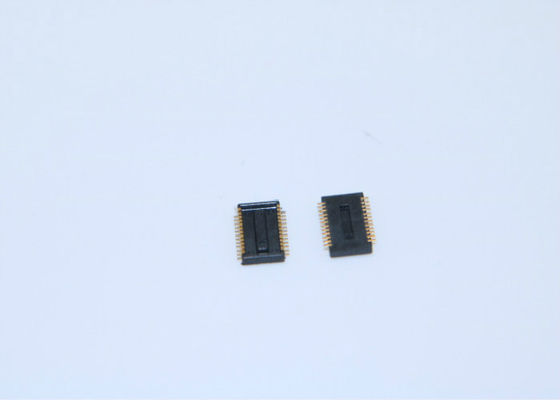

0.4mm Pitch Pcb To Pcb Connector Female Type Replace Kyocera 24-5805-024-000-829+

0.4mm Pitch Pcb To Pcb Connector Female Type Replace Kyocera 24-5805-024-000-829+
0.4mm Pitch Pcb To Pcb Connector Female Type Replace Kyocera 24-5805-024-000-829+

Large Image :  0.4mm Pitch Pcb To Pcb Connector Female Type Replace Kyocera 24-5805-024-000-829+

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5009-F024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Smt Connector Gender: Female
Application: Printed Circuits Board Plating: Gold Plating
Pins: 24 P Part Number: 5009-F024-04 / 24-5805-024-000-829+
High Light:

board to board power connectors

,

board to board header connector





H=1.0mm 0.4mm pitch 24 pins female type BTB connector replace kyocera 24-5805-024-000-829+





  • Reliable mechanical and electrical connections, thanks to the double-sided ScaleX contact system
  • Various numbers of positions, designs, and stack heights with high wipe lengths
  • ScaleX technology for high tolerance compensation and protection of contacts
  • With closed shielding concept for high EMC protection as an option
  • Board-to-board connectors in shielded and unshielded versions
  • Compact, high-position board-to-board and wire-to-board connectors for space-saving device designs
  • Additional solder anchors reduce the mechanical strain on the soldering spots





Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  5009-F024-04 / 24-5805-024-000-829+
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Product Type & Condition :



Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.





Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
