Male Type Board To Board Power Connectors Replace Kyocera 14-5805-024-000-829+

Male Type Board To Board Power Connectors Replace Kyocera 14-5805-024-000-829+
Male Type Board To Board Power Connectors Replace Kyocera 14-5805-024-000-829+

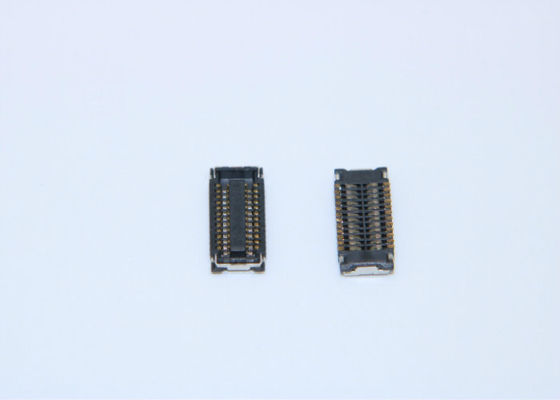

Large Image :  Male Type Board To Board Power Connectors Replace Kyocera 14-5805-024-000-829+

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5009-M024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Smd Board To Board Connector Part Number: 5009-M024-04 / 14-5805-024-000-829+
Gender: Male Electrical Rating: AC/DC
Insulation Resistance: 500M Ω Plating: Gold Plating
High Light:

board to board power connectors

,

board to board header connector





H=1.0mm 0.4mm pitch 24 pins male type BTB connector replace kyocera 14-5805-024-000-829+







Features
  • 0.4mm Pitch
  • Stacking heights (mm): 7, 9, 10, and 12
  • Contacts (number of positions) available: 10, 20, 30, 40, 50, 60, 70, 80, 100, and 120
  • Vertical and right-angle variations

  • Plug receptacle connector
  • Gold contact plating
  • Operating temperature: -55°C (min) to +85°C (max)
Applications
  • Industrial machinery
  • Servo motor/servo amp
  • Broadcast equipment
  • POS terminal

  • Medical equipment
  • Car navigation
  • Office equipment



Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  5009-M024-04 / 14-5805-024-000-829+
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white





Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.







Shipping:



1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.







Product Type & Condition :



Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.





Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
