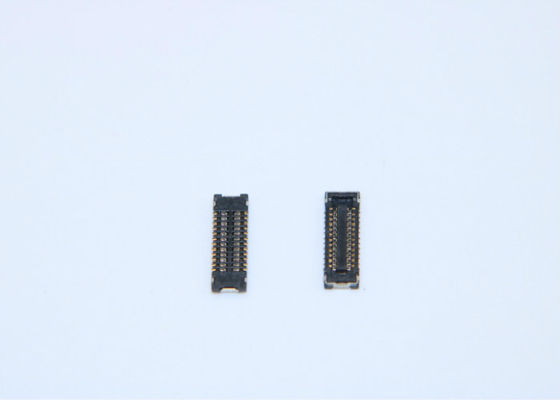

Assembly Board To Board Connector , 24 Pins Male Type 0.4mm Pitch Connector

Assembly Board To Board Connector , 24 Pins Male Type 0.4mm Pitch Connector
Assembly Board To Board Connector , 24 Pins Male Type 0.4mm Pitch Connector

Large Image :  Assembly Board To Board Connector , 24 Pins Male Type 0.4mm Pitch Connector

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5010-M024-04

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Printed Circuit Board Connector Connector Type: Assembly Connector
Part Number: 5010-M024-04 / AA07-PO24VA1 Gender: Male
Plating: Gold Plating Pins: 24 P
High Light:

board to board power connectors


board to board header connector



Replace JAE AA07-PO24VA1 , H=1.0mm 0.4mm pitch 24 pins male type BTB connector



Features and benefits


 Considering about luminescence property of LED device,this LEB connector is designed as low profile

type connector for LED lighting.and achieves the space saving. The hrizontal connection between PCBs

enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel

use for the connector.Fork type contact that has a high contact pressure (receptacle side) and enough mating

stroke provide the stable contact performance even if the PCB expands and contracts due to heat.




Product Application:


1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments



Product Description :


Product name: DALEE connector
Secification: 0.4mm Pitch
part number:  5010-M024-04 / AA07-PO24VA1
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white




Competitive Advantages:


1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Payment term and delivery


1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
