Product Name: | Circuit Board Pin Connectors | Part Number: | 5010-F024-04 / AA07-SO24VA1 |
---|---|---|---|
Gender: | Female | Insulation Resistance: | 500M Ω |
Pins: | 24 P | Application: | Electrical Equipment,PCB |
High Light: | board to board power connectors,board to board header connector |

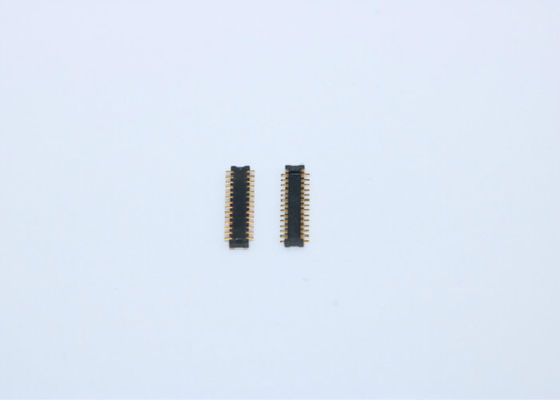

Replace JAE AA07-SO24VA1 , H=1.0mm 0.4mm pitch 24 pins female type BTB connector
RIGHT-ANGLE HORIZONTAL BOARD-TO-BOARD CONNECTION:
• For applications requiring boards to be plugged in on a horizontal plane, right angle sockets and headers are used. RIGHT-ANGLE
PERPENDICULAR BOARD-TO-BOARD CONNECTION:
• Right-angle sockets and headers can also be used in tandem with vertical mount sockets and headers to create a perpendicular interconnect between two boards.
LOW PROFILE BOARD-TO-BOARD CONNECTION:
• For applications requiring boards to be mated very closely together to save vertical space.
• The carrier socket is placed in position, allowing the receptacles to fall into the holes in a pc board.
• Only the shoulder of the receptacle rests on the surface of the pc board.
• After wave soldering, the carrier is removed and only the height of the shoulder is left above the board. Effectively, the entire “insulator” has been eliminated.
• Next, a male header is mated to provide for a very tightly-spaced, pluggable board-to-board interconnect.
Product Description :
Product name: | DALEE connector |
Secification: | 0.4mm Pitch |
part number: | 5010-F024-04 / AA07-SO24VA1 |
Certification: | ISO9001,UL,ROHS and the latest REACH |
Operating voltage: | 10V AC(RMS)/DC |
Withstand Volt : | 200 V AC/minute |
Operating Temprature: | -25 ℃ - +80 ℃ |
Insulation Resistance | 500M ohms min. at 250VDC |
Dielectric withstandig voltae: | 500VAC/1minute |
Contact Resistance: | 1000m ohms max |
Contact material: | Phosphor bronze/gold plated |
Housing: | LCP, UL94V-0, white |
Competitive Advantages:
1, 11 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict shipping ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
Product Application:
1, electrical equipment .
2, Communications Industry.
3, Security Equipment.
4, Automotive Filed
5, Network Communications
6, Measuring Instruments
Product Type & Condition :
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.
Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
