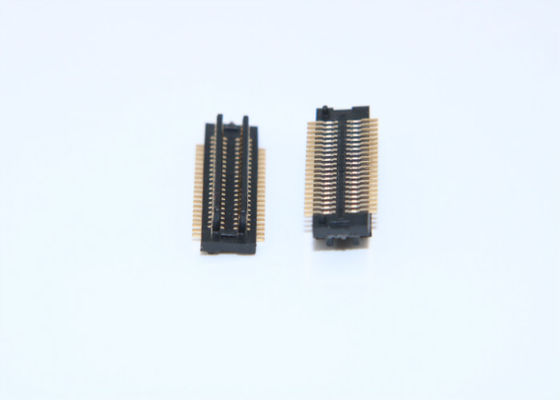

10V AC/DC Board To Board Connector 0.5mm Pitch 1.0mm 2*20 Pins 5001-BTB0510-40M

10V AC/DC Board To Board Connector 0.5mm Pitch 1.0mm 2*20 Pins 5001-BTB0510-40M
10V AC/DC Board To Board Connector 0.5mm Pitch 1.0mm 2*20 Pins 5001-BTB0510-40M

Large Image :  10V AC/DC Board To Board Connector 0.5mm Pitch 1.0mm 2*20 Pins 5001-BTB0510-40M

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0510-40M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Power Connectors Part Number: 5001-BTB0510-40M
Gender: Male Electrical Rating: AC/DC
Application: Printed Circuits Board Pins: 2*20 P
High Light:

board to board power connectors


board to board header connector


5001-BTB0510-40M Board To Board Connector 0.5mm pitch 1.0mm 2*20 pins double row contact





• Through-hole mounting is the process by which component leads are placed into drilled holes on a bare PCB.

• Through-hole components are best used for high-reliability products that require stronger connections between layers

• Allowing the components to withstand more environmental stress that’s why through-hole technology is commonly used in military and aerospace products that may experience extreme accelerations, collisions, or high temperatures.




• SMT the process by which components are mounted directly onto the surface of the PCB known originally as “planar mounting”

• It has become essential to PCB design and manufacturing, having improved the quality and performance of PCBs overall, and has reduced the costs of processing and handling greatly.

• The key differences between SMT and through- hole mounting are

• (a) SMT does not require holes to be drilled through a PCB,

• (b) SMT components are much smaller,

• (c) SMT components can be mounted on both side of the board.

• The ability to fit a high number of small components on a PCB has allowed for much denser, higher performing, and smaller PCBs.


Product Description :


Product name: DALEE connector
Secification: 0.5mm Pitch
part number:  5001-BTB0510-40M
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white




Competitive Advantages:


1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days







1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.




Product Type & Condition :


Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.



Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
