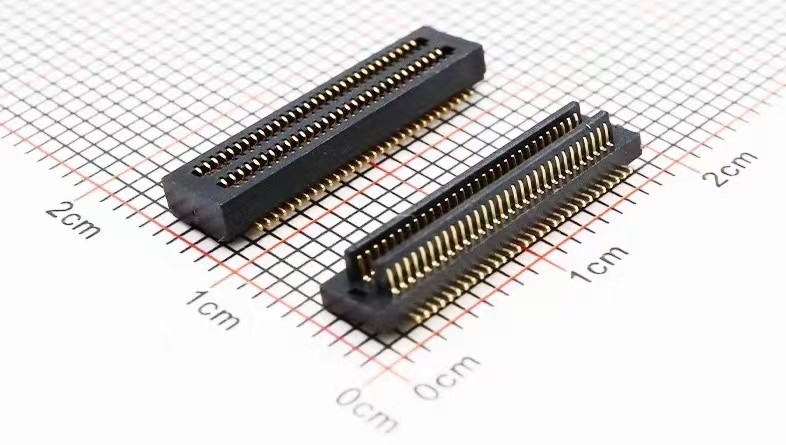

0.5mm Pitch Height 3.0mm Board To Board Connector 60 Pins

0.5mm Pitch Height 3.0mm Board To Board Connector 60 Pins
0.5mm Pitch Height 3.0mm Board To Board Connector 60 Pins

Large Image :  0.5mm Pitch Height 3.0mm Board To Board Connector 60 Pins

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-10 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Connector Part Number: 5001-BTB0530-60F
Gender: Male Electrical Rating: AC/DC
Plating: Gold Plating Pins: 2*30 P


0.5mm Pitch Height 3.0mm Board To Board Connector 60 Pins



Board to Board Permanent Stamped Pin Machined Pin Straight Right Angle Movable Stamped Pin Female Male Machine Pin Straight Through Hole Female Male Right Angle Through Hole Female Male



• Permanent connection between two boards can be readily achieved by soldering a through-hole header to both the main (mother) board and mezzanine (daughter) board.



• In most board-to-board applications, design requires that the boards are pluggable.

• The male headers in single and dual-row configurations are mated with female sockets.

• This allows for easy replacement in the event of board failure


Product Description :


Product name: DALEE connector
Secification: 0.5mm Pitch
part number: 5001-BTB0530-60M
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white




Competitive Advantages:


1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days



Product Application:


1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments




Product Type & Condition :


Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.



Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
