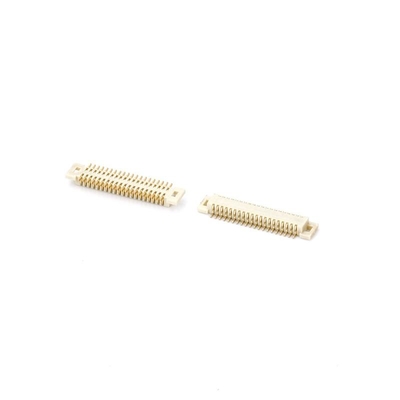

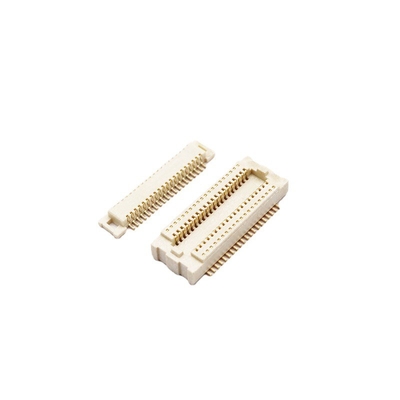

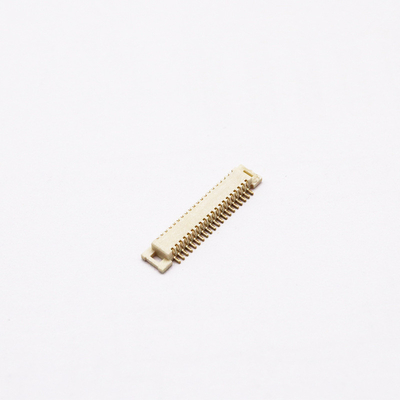

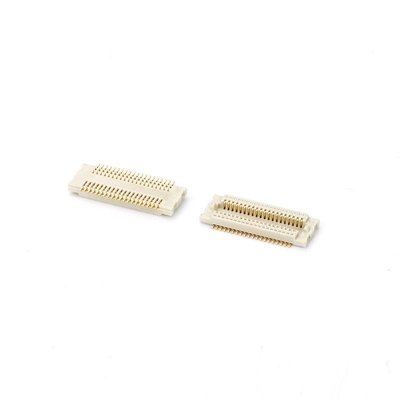

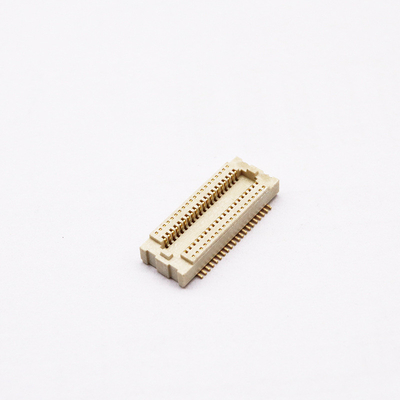

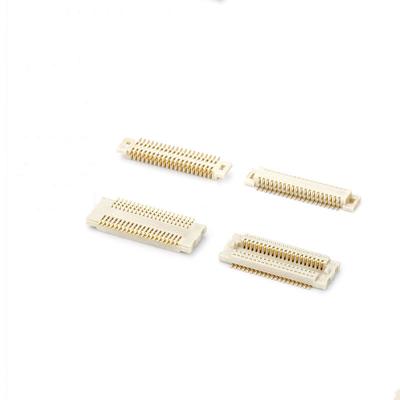

0.5 Single Slot Board-to-Board Connector Hopco 2.0/2.5 Terminal AXK5F30547YG Domestic Replacement Multi-pin Position

0.5 Pitch Single Slot Board-to-Board Connector

BOARD TO BOARD CONNECTION TYPES:

Board to Board Permanent Stamped Pin Machined Pin Straight Right Angle Movable Stamped Pin Female Male Machine Pin Straight Through Hole Female Male Right Angle Through Hole Female Male

PERMANENT CONNECTION:

• Permanent connection between two boards can be readily achieved by soldering a through-hole header to both the main (mother) board and mezzanine (daughter) board.

MOVABLE CONNECTION:

• In most board-to-board applications, design requires that the boards are pluggable.

• The male headers in single and dual-row configurations are mated with female sockets.

• This allows for easy replacement in the event of board failure

Product Description :

Competitive Advantages:

1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days

Product Application:

1, electrical equipment .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments
